Electric question Laverda Lesmo GS125

LAverdahuib

New member
Location
Delft Nederland
Hello :) I put the minimum of wiring on the right place. But no spark ?? Does it need the accu? The red 2 wiring is open/no connection to something. What to do :) help.. Huib

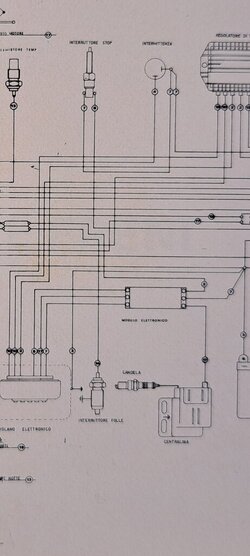

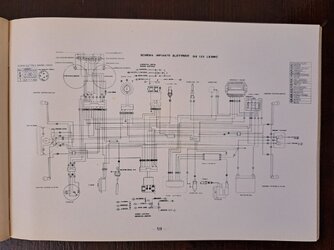

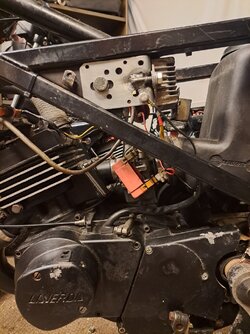

20231125_114001 (1).jpgScreenshot_20231128_204857_Gallery.jpg20231128_204925.jpg

Hi Huib,

First off, can you please explain what you mean by "accu" and also identify which two red wires?

After that, I confess I'm not familiar with this ignition system and I cannot make out from the wiring diagram how it's is designed to work:

1. The "centralina" is not the usual 3-wire electronic ignition transducer unit such as was used for example on the LBs (and also on lots of Morinis, Ducatis etc).

2. I don't understand the function of the "modello elettronico" that is fitted between the alternator ("volano elettronica") and the "centralina".

But obviously if either of these units is faulty, that would explain your lack of spark. And I fear that, they being electronic, the only practical way to test them will be by replacement ...

Hopefully someone who knows how the system works will come along. Piet, Marnix, do you know anything about these?

Craig


Hello :) I put the minimum of wiring on the right place. But no spark ?? Does it need the accu? The red 2 wiring is open/no connection to something. What to do :) help.. Huib
View attachment 86838

Last edited:
accu = battery :) the electronico box has one wirring red = number 2 what to do ore purpose? with this one? i have bought almost already another Bobine to exchanges.. thanks for your reply:)

Craig - you've done a good job in trying to understand Huib's post for which thanks.
Like you, I have no knowledge of this model.

Huib's question about the purpose of the red wire on terminal 2 is difficult to answer because I can't read the ignition switch/kill switch details on the wiring diagram.

I did think it might just be a mechanism to kill the engine and stop it from being started without an ignition key. In other words, the alternator provides a magneto type AC output to the electronico box which directly fires the coil and plug. So no battery / 12v supply needed. But I'm not sure that is the case - it may be that the box does need a 12v supply.

Ok ...

1. From my reading of the wiring diagram, you don't need to have the battery connected.

What I think happens is that power for the ignition system is provided by a feed coil on the alternator. This is a very common system used on lots of small capacity engines.

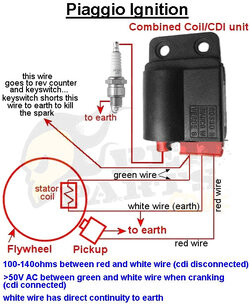

Here is a typical example which seems to match yours*. Note that in this drawing, the feed coil is called a "stator coil". Also, the wiring colours seem to be different from yours; so you'll have to allow for this.

Piaggio ignition.jpg

Obviously if this "stator coil" isn't working, it will produce no power and the ignition won't work.

So:.
Start by trying the test suggested above -" 50V AC between the 'green' and 'white' wired when cranking". "Cranking" means kicking the engine over.

You will need to work out which wire is which since, as I said, it seems the wire colours don't match the Laverda installation. And note that it's AC volts NOT DC, so set your meter appropriately.

If you find the coil IS producing electricity, check the pick-up is working by measuring its resistance using an Ohmmeter as suggested above.

2. As to the red wire, that would seem to be the green wire in the diagram above. It's a control wire connected to the ignition ("key") switch. How this works on Ducatis is this wire is used to turn the ignition OFF by grounding the ignition feed from the "stator coil".

* Except there's no "modello elettronico". I still don't know what that does ...

Last edited:
Craig - you've done a good job in trying to understand Huib's post for which thanks.
Like you, I have no knowledge of this model.
<snip>

Hi Rob,

No worries. Since the post you picked up on, I've added another which may be a bit of help to Huib. I strongly suspect Laverda would have used something similar to the "Piaggio" system shown in the illustration and which was very common at the time.

But what the "modello elettronico" does, escapes me :confused:
