Bosch advance mechanism pictures and details on the springs

[lonken]

Hi does anyone have a picture of the assembly of the advance mechanism and the springs please any information on the ignition system would be useful as I have issues timing and acceleration. Thanks



[rez]

Artikel-Details

Laverda Racing Team Konstanz - das Laverda-Paradies

www.laverda-paradies.de



[lavgert]

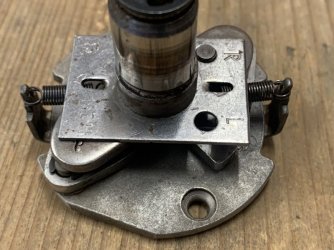

Hi lonken, here are some pix of the advance mechanism - I hope it will help you! Ciao, Gert



[lonken]

Hi lonken, here are some pix of the advance mechanism - I hope it will help you! Ciao, Gert

Thanks Gert yes this is what I was looking for, the lower plate is missing on mine, I'll have to make one.



[The Sock]

Thanks Gert yes this is what I was looking for, the lower plate is missing on mine, I'll have to make one.

Check Alan James, on here, he may well have one?



[lonken]

Check Alan James, on here, he may well have one?

Thanks



[piranha-bro2]

the lower plate is missing on mine, I'll have to make one.

Out of interest, which part is 'the lower plate'? I'd say every piece of that mechanism is essential to its operation.
