Bracket question.

[philw]

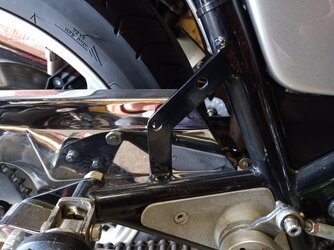

Hi All, can anyone tell me what this bracket with 2 drilled holes on the right side of my Jota frame is for?.. please see pic.

Thanks Phil.



[Gerald]

Some markets had left side shift, right side brake. The bracket will support the brake cylinder if required.

Gerald



[helicopterjim]

That is for the rear brake master cylinder if the bike has RHS brake and LHS shift kit.

Jim



[helicopterjim]



[philw]

Thanks chaps, that explains it.



[Paul Marx]

And vice versa.

Paul



[helicopterjim]

And vice versa.

Paul

"That explains it, thanks chaps." ..... ???



[Alzero]

Looking at the angle movement of the rod end at the master cylinder it is no wonder that the rear brake in inefficient! I’m surprised it works at all.



[helicopterjim]

Looking at the angle movement of the rod end at the master cylinder it is no wonder that the rear brake in inefficient! I’m surprised it works at all.

It works just fine. What is inefficient is the lack of photo showing the angle movement of the rod end at the master cylinder. You may be confusing this with the issue of the linkage on a LHS brake setup.

Jim



[Alzero]

Is there another pivot there changing the movement? From the photo it looks like a near 90* angle to the piston.



[GregT]

There's a bellcrank on the bottom end of the mastercylinder. Works well enough.



[Alzero]

Copy that, thanks.
