Cylinder Head Rework

[Jota Rob]

Bit of an update on my head, despite not being used for 12 years, it hasn't fixed itself.

Several operations each by different persons.

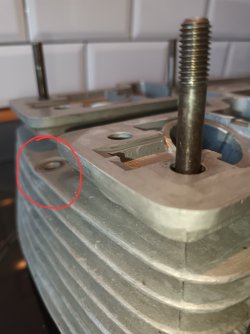

The head was soft and not useable. Cam pillars had sunk again,top deck too thin.
M7 std holes collapsing outward, bending studs.
Several threads pulled.

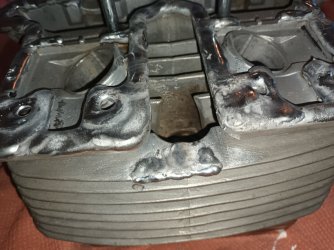

I had the top welded with rods I bought and supplied. I preheated the head and bolted it, although I had to go back a second time after a light skim to add weld because of the crown contour.

I then had the head heat treated.

Then had the chamber's laser welded.

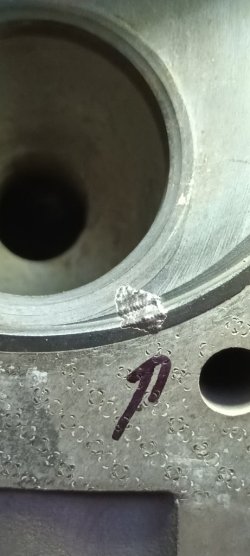

Followed by some not inconsiderable machining work. It now sits at 93.85mm.

The cam bucket bores have tightened which needs addressing and care with new guides, so plenty of time to mess it up yet.



[Jota Rob]

More pics

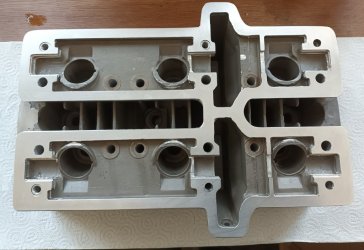

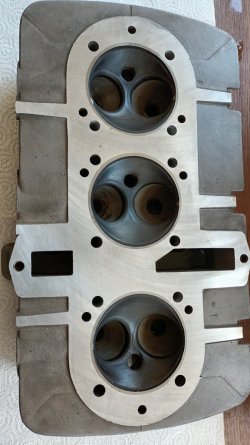

The final 2, are where I'm at now. Its Been hard work and I didn't do any of it apart from removing guides at 180⁰c



[Vince]

Nice simple bike, anyone can fix them. Impressive Engineering right there.



[piranha-bro2]

Impressive resto work - after all that toil I hope it holds up and doesn't just go the way of when it was new!!



[Jota Rob]

I hope it holds up too. There's not many options , even if you find a " good" used head, you still have to spend a shed load to get it tuned, ported etc.
On Reds advice, I'm going to ceramic coat the hot path of the head/ valves etc
I've already used the coatings so I'm confident I can do that part.
