Front wheel axle - '80 Jota

[tim.cat]

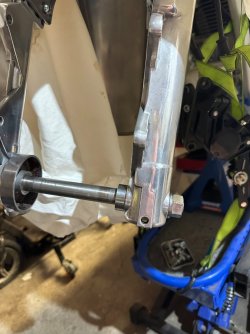

Didn't get great photos of the front wheel axle when I took the old girl apart about 3 years ago. I'm reassembling the front wheel and can't seem to get it right. Am I missing something? Non of the green books I have seem to be much help.

Thanks in advance...



[Schurminater]

What seems wrong ?.........Sure its Nut,washer,leg,spacer,wheel,speedo drive,leg,axle head.



[Schurminater]

Have you been looking at a parts list?
View attachment 96417

#16 fits inside #3 to stop the alloy from being crushed.
I didn't realise they were two parts until relatively recently.
Check the centre of your speedo gear cover with a magnet.
If it sticks, the washer is in there.

From a previous post Co Hamish



[The Sock]

Didn't get great photos of the front wheel axle when I took the old girl apart about 3 years ago. I'm reassembling the front wheel and can't seem to get it right. Am I missing something? Non of the green books I have seem to be much help.

Thanks in advance...

You appear to be missing a front wheel.
Apart from that, everything else looks right.



[Rob]

You're missing the pinch bolts at the bottom of each fork leg. As others say, assembly looks OK apart from the missing wheel!
It is necessary to fit the speedo drive housing on to the wheel before fully centring the wheel hub to insert the spindle through the fork leg and wheel assembly
