Jota fairing mount positions

[dynodave]

Could some kind person tell me the dimensions of the threaded fairing mounting bosses welded to the headstock? I need the distance from the top of the headstock to the centre of the first boss, the distance between centres and the diameter, length and thread size?
Thanks.



[Dellortoman]

Someone might have a frame with fairing spigots that they can measure for you, but I think this has been discussed before. You might find some info with the search function.
For example: https://www.laverdaforum.com/xf/threads/101837/



[dynodave]

I can't find anything with positional dimensions.



[Schurminater]

I can't find anything with positional dimensions.

Hi Dave,
I will see if I can get close enough to measure mine tomorrow for you



[dynodave]

Thanks, I would appreciate that



[Schurminater]

Thanks, I would appreciate that

Afternoon Dave,

Sorry for the delay in getting back to you, my fairings still fitted so I had to make up all sorts of cardboard templates in order to get some decent measurements.
So here's what I have for you.
Distance from the top of the frame headstock to the centre of the first boss is 38mm (that's painted section of headstock)
Distance between centres is 63mm
Thread size is 8mm
Boss length is 18mm

A template made which sits over both bosses and to the top of the headstock works out at (from the top)
32mm headstock to top of first boss
13mm (boss dia including paint)
50mm space between bosses
13mm (2nd boss dia including paint)

Hope that makes sense to you and is of some help?

all the best
Steve



[Schurminater]



[Schurminater]



[Schurminater]

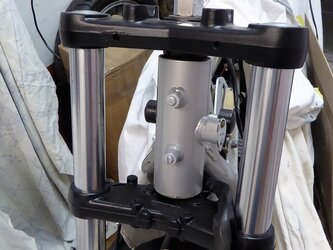

Took these in 2016 during the first winter clean up and at that point I hadn't even ridden the bike!.......a lot of happy miles and smiles since then.



[dynodave]

That’s Brilliant! Thanks very much for that!
