Laverda 1200TS tail unit

[gerty]

Hi guys I have a 1200TS and the tail unit has a hole for a bolt at the top. When I got bike their was nothing in the tail unit, does anyone know if their should be something in their held by the top bolt as cannot find a parts diagram
Thanks Ian



[mauricejota7604]

Hi Ian there is an inner plastic section inside the cover, there is a screw that bolts down into that inner cover.
The inner plastic tray tends to become brittle and break up.



[Spider Wales]

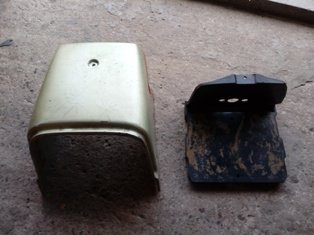

Like this bit Ian.



[gerty]

Thanks for that dont have one of them anyone got a part number for it
Thanks Ian



[Spider Wales]

How is your rear light fitted then Ian? The three holes on the one in my picture is where it bolts on.
