Nippo Denso: Switch gear. Left and right.

[Charley]

Nippo Denso: Switch gear.
Very possibly Suzuki, not necessarily originally Laverda, as lettering was a combination of white and orange on the left switch piece when bought.
White lettering on the right hand switch gear.
Cleaned and painted, by me and 'no!' I am not pretending they are perfect.
Functions do all work.

The throttle tube is from Steve at 3D Unobtainium and in my opinion, it's good work.
I bought the switches in horrible condition, in error, as they are not the correct ones for my bike.
Ignorance and enthusiasm are an expensive combination.

Twin cable throttle tube, off/run/engine stop/start, switch gear, including throttle damper, all in good working order. cables 55cm long.

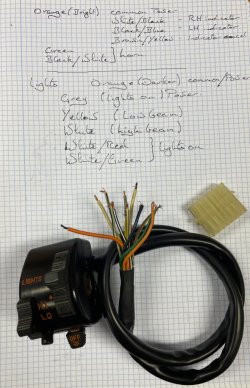

Left hand switch gear, all functioning, new paint fasteners and wire sleeve. Cable 60cm long.
Lights, on/off, main/dip, separate headlight flash button, indicators with press down to cancel function, horn.

Both with new stainless fasteners externally.

€155.00 plus postage.
I just want to get my money back.
I may accept offers or separate but obviously I'd prefer not to.
I'm not charging for the work I put into them to make them presentable and function or the new bits I put in and on, except of course the throttle tube.

I'll be in the UK later this month so could post them in the UK to save postage and customs silliness, but there will obviously be a delay.
I am at present in the Netherlands.
Postage will be extra.
Payment via PayPal possible.



[sfcpiet]

Is that a "push to cancel" indicator knob Charley?

OE Suzuki switches used to have the Suzuki "S" on the underside.

piet



[The Sock]

Is that a "push to cancel" indicator knob Charley?
piet

It's the headlamp flasher, Piet.
P for "passing light" (US).



[Paul Marx]

It's the headlamp flasher, Piet.
P for "passing light" (US).

With "off" on the indicator switch none the less.
Paul



[sfcpiet]

With "off" on the indicator switch none the less.
Paul

At least Paul's paying attention...

piet



[The Sock]

It was the chevrons pointing in the wrong direction that put me off.



[Charley]

Is that a "push to cancel" indicator knob Charley?

OE Suzuki switches used to have the Suzuki "S" on the underside.

piet

Hi Piet,
I've seen no 'S' for Suzuki, but I'll check again in the morning.
Yes, that is 'OFF' push to cancel the indicators.

Maybe from a later model Laverda than mine?

I have so little experience that I'm the wrong person to ask about these things.
I need to check later wiring diagrams to see if wire colours match later models.



[piranha-bro2]

That's a very funky addition to the trad ND switchgear, being able to cancel with a downward push.



[Tippie]

It looks like early Yamaha lh switch, they were early with push to cancel. No matter what it is off, if it works use it.



[Vince]

The 2 best mods are push to cancel blinkers and headlight on and off. So many bikes don't have that battery-saving feature.



[The Sock]

Is the push to cancel self contained, or does it depend on a relay/additional electronics to work?



[pf1]

Some of those Yamahas had quite complicated (for me) set ups for lighting particularly the USA ones.



[Charley]

Having done a bit of research and looking again at the left hand switch gear that I cleaned up earlier this year, I can confirm that it is Suzuki and most probably off an early 80s GS and they were fitted with a specific indicator relay to allow 'Push to cancel' indicators.
Every day is a school day.



[Vince]

The one I have has an internal gate in the switch that just snaps the lever back to the centre with a push. Very simple, no extra electronics.



[sfcpiet]

Having done a bit of research and looking again at the left hand switch gear that I cleaned up earlier this year, I can confirm that it is Suzuki and most probably off an early 80s GS and they were fitted with a specific indicator relay to allow 'Push to cancel' indicators.
Every day is a school day.

Thanks for that! As the rest of the block doesn't really match the OE Laverda fitments, I'll be on the lookout for a switch block from which I can rob the indicator switch. Pretty certain it will be much the same as Vince described, the Jap makers didn't go to more trouble than necessary... other than Honda maybe.

piet



[Tippie]

The one I have has an internal gate in the switch that just snaps the lever back to the centre with a push. Very simple, no extra electronics.

Exactly what all the other ones have. Even my VFR has that. No relay needed.
