SFC 1000 swingarm kit

[MVma]

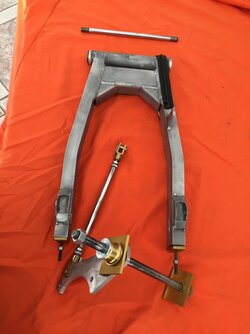

Among a bunch of RGS and SFC 1000 parts that I just got, here is a complete swingarm/brake assembly for an SFC 1000. Includes the swingarm, the swingarm and wheel axles, the plate holding the brake caliper, the brake rod with the ball joints, pins and clips, all spacers, nuts and washers, the chain tensionners. Probably one of the very last available. Apart the SFC 1000, it can be installed on all RGS, RGS Corsa, RGA, etc models, a bracket has to be welded to the frame for the brake rod. Cannot be installed on 180 frames unless big modification is done.
If anyone is interested, please make an offer on realistic price basis.
Funnily enough, these brand new (NOS) parts were mine some years ago, I sold them to a guy who fitted them to a RGS for some months and less than 500 km before he removed them when he sold his bike.



[KERMIT1200]

Hi Jean , Could you tell me what the swinging arm weighs without spindles, and rear brake arm? I assume standard 17mm rear wheel spindle?

Cheers,
Andy



[MVma]

Hi Andy,

Just checked.
- Swingarm, without the axles, spacers, washers but with the needle bearings and the chain protections: 3.1 kg (I guess just a bit less than 3 kg for the swingarm alone)
- Brake arm (complete with nuts, joints, axles, clips: 418 grams
- Brake arm (complete) + caliper holder (aluminium plate): 538 grams.

Yes the wheel spindle is the standard 17 mm.

Regards
