Tailight LAVERDA 24 hours of Le Mans 'Le Bol d'Or' 1972

Lavermax

Lavermax

Junior member
Location
Vicenza
Hello everyone,
I would like to know the model of the rear light used in this photo 'Le Bol d'Or' 1972 (maybe a ZKW M1313A).

LAVERDA 24 hours of Le Mans 'Le Bol d'Or' 1972.jpg

Why was this used instead of the well-known CEV?

Thanks

Max

The main reason to use these tail lights was the fact that there were three separate bulbs in it, so if a bulb blew, there still was another one. The third bulb was a brake light. The first ones dat were used were made by Philips and mounted by Dutch importer Raymakers. The factory started to use them too, but similar tail lights were made in Italy. The one in the picture is an Italian one, which had a lens with a different shape.

Marnix

MarnixSFC said:
The main reason to use these tail lights was the fact that there were three separate bulbs in it, so if a bulb blew, there still was another one. The third bulb was a brake light. The first ones dat were used were made by Philips and mounted by Dutch importer Raymakers. The factory started to use them too, but similar tail lights were made in Italy. The one in the picture is an Italian one, which had a lens with a different shape.

Marnix
Click to expand...

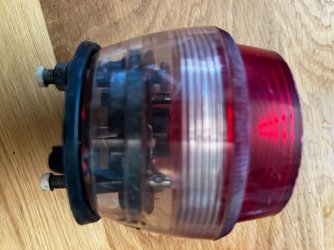

I managed to recover this ZKW tailight, I don't know if I got a bargain to make a replica but I would say it serves the same function ...

What do you say? :)


Hi
See here:


Attachments

  • IMG_7636.jpeg
    102.5 KB · Views: 38
  • IMG_7637.jpeg
    92.7 KB · Views: 37
  • IMG_7638.jpeg
    89.3 KB · Views: 37
  • IMG_7639.jpeg
    96.6 KB · Views: 35
  • IMG_7640.jpeg
    90 KB · Views: 36
Lavermax said:
Hello everyone,
I would like to know the model of the rear light used in this photo 'Le Bol d'Or' 1972 (maybe a ZKW M1313A).

Why was this used instead of the well-known CEV?

Thanks

Max
Click to expand...

SAW made the "3 bulbs" type as well

Have a look at eBay item # 134110344257


P1020715.jpg P1020716.jpg

Previous factory A105 type

P1020721.jpg P1020722.jpg

Last edited:
Lavermax said:
Interesting, ISAW "3 bulbs" is identical to the one in the following photo (LAVERDA 24 hours of Le Mans 'Le Bol d'Or' 1972); probably many brands of the same type were used:

View attachment 92580
Click to expand...

"Many brands" .. I really don't know ..

But never came across a "3 bulbs" Philips of this type ..
I don't mean that it doesn't exist.. but after much research I have never come across one.

Rob said:
I was told it was made by Philips. Impossible to find - I gave up looking and used a CEV unit off a Chott, suitably rubber mounted
Click to expand...

Hi Rob,

Think this Philips "3 bulbs" unit story for the tail light version used on the BO '72 and '73 SFC racers (Oss 24h) is rather a myth ..

Unless an expert here has stumbled upon one of these so called Philips units .. ??

With photographic evidence to support it ? 🙂

A few years ago I looked through the catalogues from that era with no luck.

Cheers
Stéphane

You may be correct, Stéphane. I was told this by Bob Dixon when I began collecting parts for my own spaceframe replica. I know his research into the details of the factory bikes was extensive back in 2007 when he built his. He narrowly missed the elusive item after Wolfgang sold one to another spaceframe replica customer.
