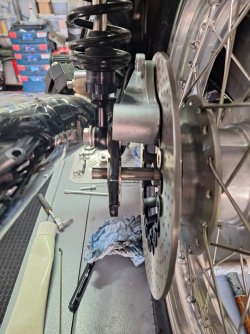

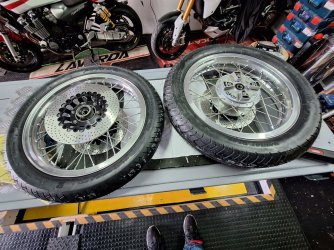

Hello Folks, finally got around to buying a rear hub from Andy Wagner, it has now been laced to a replica BORANI rim. On fitting to my 3CL though it seems is some kind of modification is needed for the brake caliper support bracket (refer to photos). Has anybody else been through this before? As I guess most people on this site are aware, Andy is running his business down so he's not as available so much as in the past. Still have emailed him, in the meantime though if anyone has some advice they can share, I would most appreciate it, cheers Russ
Rear wheel spoke conversion - brake caliper bracket.
- Thread starter russo011
- Start date
Does it not fit between the spacer and the swingarm? Is the hub correctly laced in?
Where did you get your Borrani replica rim?
Paul
sfc vintage
Hero member

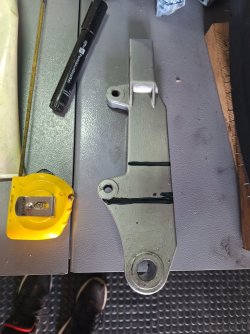

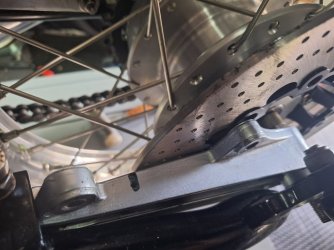

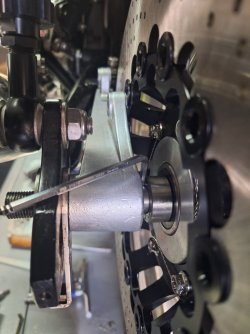

Hello Paul, seems everything just about lines up, however, there appears to be a small collision between the brake disc around the mounting pins. Very awkward to measure, in any case may well be curable with removal of some material on the backside of the caliper bracket between the 2 black lines. Loathe to do that though if there is a simpler solution. Rims came from http://www.oldtimerreifen.com/
Mr Norbert, is an old school guy and a mine of information.
Attachments
Hello Peder, can you send a photo and price, cheers Russ
sfc vintage
Hero member
Hello Peder, it's the actual bracket that the caliper mounts to that I have the issue with
sfc vintage
Hero member
Hi Russ.
Price: 120 Euro + freigt , I Will find a picture
As most available "Laverda" spoke hubs are more-or-less copies of the original SFC750 items, the original caliper bracket for cast wheels will not fit if the original disc is to be re-used. In order to "re-use" the design and fit a P08 caliper, it must be placed under the swingarm, necessitating a completely new bracket and an opposite sided caliper. I used to mill these brackets manually, they were part of the conversion set offered by Moto Witt about 35 years ago.
piet
piet
sfc vintage
Hero member
Hi Russ.
See here:
Attachments

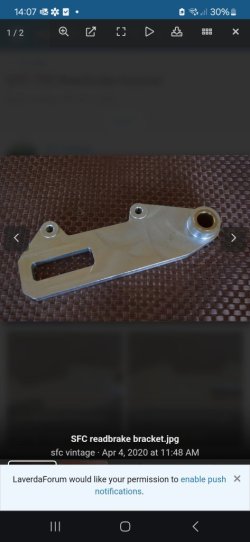

Hello Peder, I guess this is the one
Found one of your previous photos from this site, seems that an additional bracket needs to be welded onto the swinging arm though?
Attachments
sfc vintage
Hero member
Re: bracket, yes your rear swingarm needs a bracket (Rod ) like an SFC rear swingarm
Thanks, do not want to remove the swingarm from the bike though to weld on an additional bracket. Thought that the slot in the offered part fitted over the existing arrangement on the swingarm?
sfc vintage
Hero member
Do you have any details Piet?
No. 35 years ago... up to you to use your imagination.
I remember making 3 roughed out prototypes until everything fitted properly and ended up plug'n'play for the cast wheel models, used 5 or 6 bikes to test fit (just because it fits one, doesn't mean it'll fit all others). CNC in its infancy and still prohibitively expensive.
piet
I remember making 3 roughed out prototypes until everything fitted properly and ended up plug'n'play for the cast wheel models, used 5 or 6 bikes to test fit (just because it fits one, doesn't mean it'll fit all others). CNC in its infancy and still prohibitively expensive.
piet
piranha-bro2
Hero member
- Location
- Melbourne
Surely just a matter of removing metal and/or modifying spacers?
Exactly. Difficult to get the stock disc to fit with those wheels AND retaining the stock anchor on the swingarm.
Quentin, getting the caliper lined up with the stock disc while it is above the swingarm isn't possible with the stock type bracket, no space, unless you cut a chunk from the swingarm. Wasn't an easy task machining the brackets back then with our rather rudimentary facilities, I would have gladly passed it on... but Herr Witt insisted on the finished product looking "factory", which it indeed did. The conversion eventually even attained TÜV approval!
The rearward position of the lower shock mounts of the SFC/Spaceframe frees up a lot of space required to locate the caliper upstairs. Road swingarms are a lot more cramped. A lot easier to start from scratch with a more suitable/easier to work with caliper and anchor point.
piet
