I am having trouble fitting a new Sachse ignition to my Jota.
It's a 1981 mark II 180 with ignition on the left.
Does anyone have any clear photos of one fitted on their bike?
The only components in the kit I've received that fit are the pickup plate and the spacer plate, I can find no way of fitting the magnet disk and the driver sleeve.
I would like to see a photo to see if the components match what I've been sent.
Thanks in advance.

Does this help/make any sense of what is happening with yours?

S

Thread 'Laverda Mirage Sachse ignition headscratcher'

I have bought a Laverda Mirage 1980 needing some love, my first triple. It is has a Sachse ignition on it, but loose and in boxes.

I have a set of Sachse Laverda instructions but it doesnt really match what is on the bike.

The three 'pillar bolts' in pic 2 are to mount the circuit-board?. Which mounting holes do I use, or doesnt it matter? Onviously the ignition wire will roughly dictate its orientation. The instructions show two mounting bolts, but they arent pillar-bolts, like I inherited

Sachse kits generally have a red LED on it to help static time them, this one doesnt seem to...

Do you have the installation manual?

Schurminater said:
Does this help/make any sense of what is happening with yours?

S

Thread 'Laverda Mirage Sachse ignition headscratcher'

I have bought a Laverda Mirage 1980 needing some love, my first triple. It is has a Sachse ignition on it, but loose and in boxes.

I have a set of Sachse Laverda instructions but it doesnt really match what is on the bike.

The three 'pillar bolts' in pic 2 are to mount the circuit-board?. Which mounting holes do I use, or doesnt it matter? Onviously the ignition wire will roughly dictate its orientation. The instructions show two mounting bolts, but they arent pillar-bolts, like I inherited

Sachse kits generally have a red LED on it to help static time them, this one doesnt seem to...

Do you have the installation manual?
Click to expand...
Hi,
I have downloaded the instructions but they don't match what was sent in the kit, the parts physically do no fit. So I cannot get to the stage of timing it, I'm really stumped.

Hi Jef I feel your frustration,

I'm not familiar with the Sache ignition system being a Run DMC man myself,hopefully someone with more knowledge will come along and help soon,good luck.

Garry said:

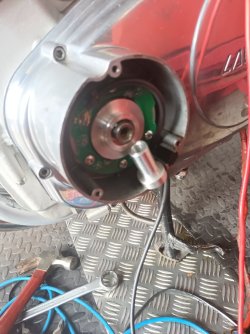

This is mine on a 120gr, but the assembly should be the same.
Click to expand...
Thanks, yes that is exactly the same but the part they sent that is wrong is the driver sleeve, the central but with the large hex nut, the one they sent doesn't fit, it's half the size and won't go over the shaft.

Take a look to

www.elektronik-sachse.de

Digitale Zündung ZDG 3.23 für Laverda 180-II

Zündungsmodul für Laverda 1000-180°-II als Ersatz für die Bosch-Zündung (Bosch-Pickups auf der linken Motorseite). Dieses Set paßt nicht für die Serie I Laverdas (Pickups auf der rechten Motorseite zwischen den Lichtmaschinenspulen). ...
www.elektronik-sachse.de www.elektronik-sachse.de

I think, you got wrong Parts.
PHone them?
They are back from Holidays.

Rainer

rez said:
Take a look to

www.elektronik-sachse.de

Digitale Zündung ZDG 3.23 für Laverda 180-II

Zündungsmodul für Laverda 1000-180°-II als Ersatz für die Bosch-Zündung (Bosch-Pickups auf der linken Motorseite). Dieses Set paßt nicht für die Serie I Laverdas (Pickups auf der rechten Motorseite zwischen den Lichtmaschinenspulen). ...
www.elektronik-sachse.de www.elektronik-sachse.de

I think, you got wrong Parts.
PHone them?
They are back from Holidays.

Rainer
Click to expand...
Thanks Rainer
Will do.
