This bloody bike. 1976 3CE

Hi Pirahna-Bro2,

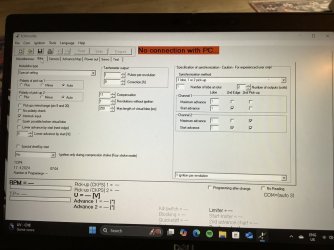

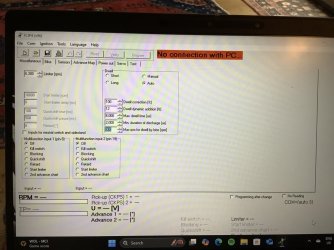

Having looked further at your pictures I see the tabs you have opened on the pictures. When I open the same tabs our two sets of settings are not that different sadly. I just don’t know where to go next.


Attachments

  • IMG_2097.jpeg
    127.6 KB · Views: 22
  • IMG_2096.jpeg
    119.2 KB · Views: 22
show us a screen shot of your Advance curve, need to see that

most of the settings that you have for the "Bike" and the "Miscellaneous" tabs are close
I use different Dwell settings but your current setting are not that far out

you should change the rev limiter to 8,600 rpm, just use the arrows to raise that number and then click on "Program" up top and the change will be transferred to the box, presuming you have turned on the ignition system and are connected

redax5 said:
show us a screen shot of your Advance curve, need to see that

most of the settings that you have for the "Bike" and the "Miscellaneous" tabs are close
I use different Dwell settings but your current setting are not that far out

you should change the rev limiter to 8,600 rpm, just use the arrows to raise that number and then click on "Program" up top and the change will be transferred to the box, presuming you have turned on the ignition system and are connected
Click to expand...
Hi Red, thanks for your input. I attach a photo of the ignition curve and hopefully you can read the other files I try to attach.
I have got myself in a right tizz over this and had a bad turn last night as a result.
If I cannot sort it I have arranged to take it to another workshop next week.
Regards
Robin


Attachments

  • IMG_2098.jpeg
    123.7 KB · Views: 44
Last edited:
I've been considering switching the points ignition on my 750 to electronic and have read differing opinions about both. My concern w the electronic is whether the instructions and support are adequate and if a MAC can be used. Are there language issues w these?
Robin- your input is welcomed.

KERMIT1200 said:
Just wondering why your 'Motorbike type' is on special settings?
I would expect to see 'Classic( 1 lobe per revolution1-2 pick ups)
Click to expand...
I use "Special settings" for the triples, only use "Classic" for the 750 and 500 Twins

Robin Webster said:
Hi Red, thanks for your input. I attach a photo of the ignition curve and hopefully you can read the other files I try to attach.
I have got myself in a right tizz over this and had a bad turn last night as a result.
If I cannot sort it I have arranged to take it to another workshop next week.
Regards
Robin
Click to expand...
looking at the Advance curve and the Base advance setting I figure that you must still be using the original triggers and rotor
if so your Base advance should be set to 8 degrees but that is not going to stop the engine from revving

actual Advance curve is not too bad and should work fine

The Ignitech system isn’t complicated. As long as a basically workable program is installed into the black box it operates as any elec ignition system would. What is a little more complicated is learning how to read and program. People with experience in Ignitech, as with computers in general, overlook the fact that what seems bleedingly obvious to them, is just a jumble of icons on a page. Anyone ever sat down with an elderly parent and tried to guide them through some of the most basic computing tasks?? I remember trying to teach my old man about files and folders and ‘saving’. You’re trying to teach someone for whom files are paper pages that have been going into filing cabinets for the last 50 years.

Simple checks like looking for a strong spark or strobing with a degree wheel could confirm if there is a fault.

In Robins case trying a different set of carbs would eliminate that as a potential cause. A lot to be gained through a process of elimination. Much of what a mechanic does is problem solving and much of the cure is in elimination.

The other factor to consider is (as pointed out) what trigger and sensor config the bike has.

I certainly wouldn’t discard Ignitech because the software part does your head in. If we reacted like that to the computer revolution we’d be reaching for the filing cabinet and the points file!

Last edited:
